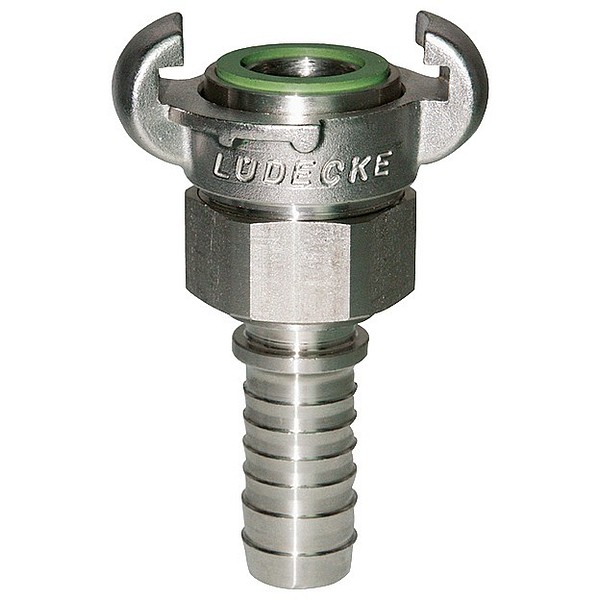

Claw coupling MODY EKS 013 kara SS

DIN 3238 MODY safety claw coupling with hose barb for industrial transfer of liquids, air and chemicals. The coupling has a 42 mm claw distance, ensuring compatibility with standard DIN 3489 / MODY claw couplings.

Manufactured from stainless steel 1.4401 (AISI 316) and equipped with an FKM seal for excellent resistance to chemicals and high temperatures. The connection is secured using the MODY safety locking mechanism by screwing.

Features
• MODY safety claw coupling DIN 3238
• Hose barb connection
• Claw distance 42 mm
• Material: stainless steel 1.4401 (AISI 316)
• Seal: FKM
• Max. working pressure PN16
• Temperature range –30 °C … +200 °C
 
Applications
• chemical transfer
• process industry
• liquid and air transfer
• industrial hose connections
