DIN 3489 standard stainless steel claw coupling with male thread for connecting hoses and pipelines in industrial fluid and chemical transfer applications. The coupling has a 42 mm claw distance, ensuring compatibility with standard DIN 3489 claw couplings.
Read more
Manufactured from stainless steel 1.4401 (AISI 316) and equipped with an FKM seal, offering good resistance to chemicals and high temperatures. Supplied with a thread protective cap to protect the connection during transport and storage. Features • DIN 3489 claw coupling • Male thread (G thread) • Claw distance 42 mm • Material: stainless steel 1.4401 (AISI 316) • Seal: FKM • Max. working pressure: PN16 • Temperature range: –30 °C … +200 °C |
EKSA 12 V

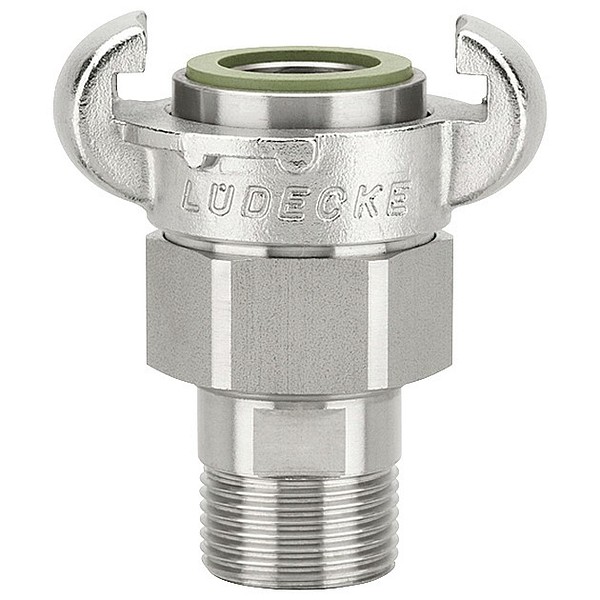

Mody G 1/2'' male stainless
Product number: 10320010500
Details
Technical details
| Available from central warehouse | Yes |
|---|---|
| Sales unit | Piece |
| Length mm | 77 |
| Claw distance mm | 42 |
| Gänga | G1/2" |
| Material | AISI 316 |
| Key distance mm | 36 |
| Thread type | Male |
