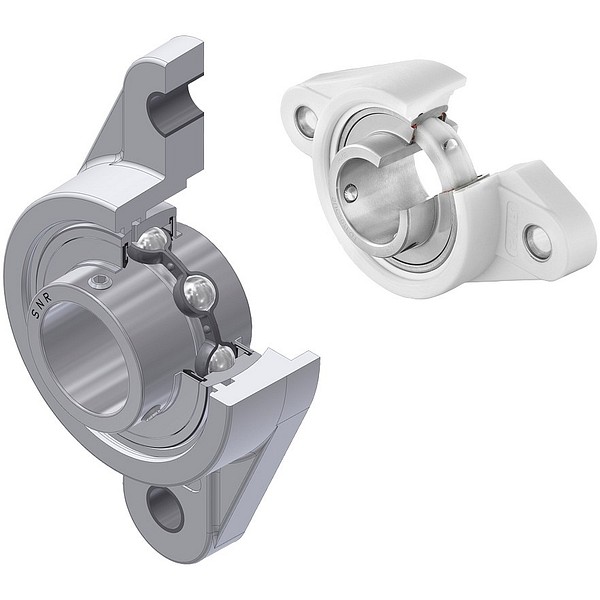

Plastic oval flange bearings

Plastic oval flange bearings
Details
SNR's SENTINEL series of bearing units are specifically designed to meet the requirements of the food industry, combining hygiene, detergent resistance, safety and bearing durability on production lines.

Features and benefits:
• SENTINEL with LUBSOLID lubrication (FG1 suffix): solid lubricant (NSF H1) prevents contaminants and water from entering the bearing and eliminates the risk of lubricant leakage
• Also available with conventional lubricant (NSF H1)
• Stainless materials (alternatively stainless steel or thermoplastic housings)
• Sealing and protection: prevents water, cleaning agents and contaminants from entering the bearing
• Long service life and low maintenance
• Sustainable bearing design significantly reduces grease and bearing consumption

The strengths of SENTINEL bearings are particularly evident in:
• Conveyor systems in the food industry
• Bottling and packaging lines
• Washing lines
• Wet and demanding production environments
• Difficult-to-maintain applications
Read more
View as List Table

Store availability is shown for logged in users. Product availability subject to prior sales.

Description

  • At central warehouse (delivery in 2-4 days)
  • In Megacenter (delivery in 1-2 days)
  • Ordered upon request or limited availability, delivery time will be confirmed after order


The Prices are VAT 0%

Grouped product items
Item code Product Name Sales unit Weight kg Axle type Internal Ø mm Clearance External Ø mm Protection Width mm Basic dynamic load rating (kN) Basic static load rating (kN) Number of mounting bolts Distance between attachment bolts (mm) Housing length mm Housing height mm Housing width mm Housing material Height bottom to center of bearing mm Stock quantity Qty
10300050197
MUCNFL205 Bearing SNR SNR Plastic bearing Piece 0,3 Cylinder 25 C3 52 Rubber 34,1 11,9 6,3 2 99 130 29,1 70 Thermoplastic 17
Pcs
10300050195
MUCNFL204 Bearing SNR SNR Plastic bearing Piece 0,25 Cylinder 20 C3 47 Rubber 31 10,9 5,3 2 90 113 26,5 64,8 Thermoplastic 15,4
Pcs
10300050199
MUCNFL206 Bearing SNR SNR Plastic bearing Piece 0,45 Cylinder 30 C3 62 Rubber 38,1 16,7 9 2 117 148 30,5 80 Thermoplastic 19
Pcs
10300050202
MUCNFL207 Bearing SNR SNR Plastic bearing Piece 0,66 Cylinder 35 C3 72 Rubber 42,9 22 12,3 2 130 163 32,8 90 Thermoplastic 18
Pcs
10300050205
MUCNFL208 Bearing SNR SNR Plastic bearing Piece 0,87 Cylinder 40 C3 80 Rubber 49,2 24,9 14,3 2 144 175 37,5 100 Thermoplastic 21,5
Pcs
10300050796
SUCNFL206FG1 Bearing SNR SNR Plastic bearing Piece 0,43 Cylinder 30 CN 62 Rubber 38,1 19,4 11,2 2 117 148 30,5 80 Thermoplastic 19
Pcs
10300050794
SUCNFL204FG1 Bearing SNR SNR Plastic bearing Piece 0,24 Cylinder 20 CN 47 Rubber 31 12,8 6,6 2 90 113 26,5 64,8 Thermoplastic 15,4
Pcs
10300050797
SUCNFL207FG1 Bearing SNR SNR Plastic bearing Piece 0,62 Cylinder 35 CN 72 Rubber 42,9 25,6 15,3 2 130 163 32,8 90 Thermoplastic 18
Pcs
10300050798
SUCNFL208FG1 Bearing SNR SNR Plastic bearing Piece 0,81 Cylinder 40 CN 80 Rubber 49,2 32 19,3 2 144 175 37,5 100 Thermoplastic 21,5
Pcs
10300050795
SUCNFL205FG1 Bearing SNR SNR Plastic bearing Piece 0,3 Cylinder 25 CN 52 Rubber 34,1 14 7,8 2 99 130 29,1 70 Thermoplastic 17
Pcs
10300050799
SUCNFL210FG1 Bearing SNR SNR Plastic bearing Piece 1,92 Cylinder 50 CN 90 Rubber 51,6 35 23,1 2 157 197 43 115 Thermoplastic 25
Pcs
