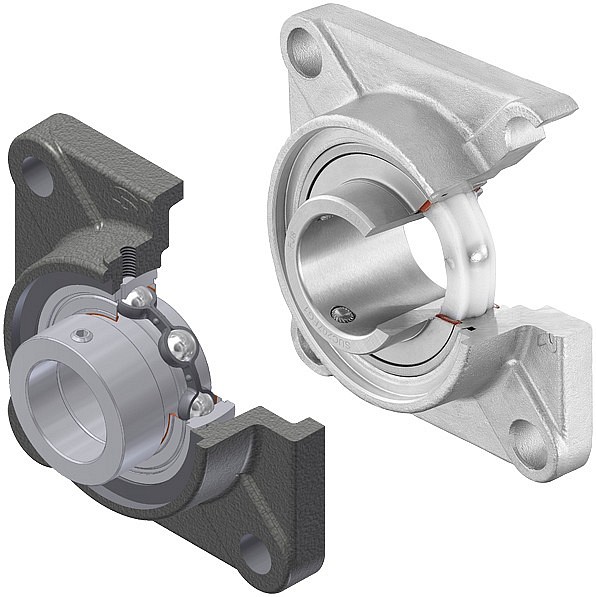

Stainless square flange bearings

Stainless square flange bearings
Details
SNR's SENTINEL series of bearing units are specifically designed to meet the requirements of the food industry, combining hygiene, detergent resistance, safety and bearing durability on production lines.

Features and benefits:
• SENTINEL with LUBSOLID lubrication (FG1 suffix): solid lubricant (NSF H1) prevents contaminants and water from entering the bearing and eliminates the risk of lubricant leakage
• Also available with conventional lubricant (NSF H1)
• Stainless materials (alternatively stainless steel or thermoplastic housings)
• Sealing and protection: prevents water, cleaning agents and contaminants from entering the bearing
• Long service life and low maintenance
• Sustainable bearing design significantly reduces grease and bearing consumption

The strengths of SENTINEL bearings are particularly evident in:
• Conveyor systems in the food industry
• Bottling and packaging lines
• Washing lines
• Wet and demanding production environments
• Difficult-to-maintain applications
Read more
View as List Table

Store availability is shown for logged in users. Product availability subject to prior sales.

Description

  • At central warehouse (delivery in 2-4 days)
  • In Megacenter (delivery in 1-2 days)
  • Ordered upon request or limited availability, delivery time will be confirmed after order


The Prices are VAT 0%

Grouped product items
Item code Product Name Available from central warehouse Sales unit Width mm Axle type Weight kg Clearance Protection External Ø mm Basic dynamic load rating (kN) Distance between attachment bolts (mm) Basic static load rating (kN) Number of mounting bolts Housing length mm Housing height mm Housing width mm Housing material Height bottom to center of bearing mm Internal Ø mm Stock quantity Qty
10300050230
SESF204N Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,72 C3 Rubber 47 10,1 64 6,8 4 86 25,5 86 Stainless steel 15 20
Pcs
10300050236
SESF205N Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,93 C3 Rubber 52 11 70 8 4 95 27 95 Stainless steel 16 25
Pcs
10300050245
SESF206N Bearing SNR SNR Stainless bearing Piece 35,7 Cylinder 1,33 C3 Rubber 62 15,3 83 11,5 4 108 30,5 108 Stainless steel 18 30
Pcs
10300050254
SESF207N Bearing SNR SNR Stainless bearing Piece 38,9 Cylinder 1,68 C3 Rubber 72 20,1 92 15,6 4 116 33,5 116 Stainless steel 19 35
Pcs
10300050260
SESF208N Bearing SNR SNR Stainless bearing Piece 43,7 Cylinder 2,2 C3 Rubber 80 22,8 102 18,2 4 130 36 130 Stainless steel 21 40
Pcs
10300050266
SESF209N Bearing SNR SNR Stainless bearing Piece 43,7 Cylinder 2,55 C3 Rubber 85 25,7 105 20,8 4 137 38 137 Stainless steel 22 45
Pcs
10300050274
SESF210N Bearing SNR SNR Stainless bearing Piece 43,7 Cylinder 2,82 C3 Rubber 90 27,5 111 23,7 4 143 40 143 Stainless steel 22 50
Pcs
10300050279
SESF212N Bearing SNR SNR Stainless bearing Piece 53,1 Cylinder 5,59 C3 Rubber 110 41 143 31,5 4 175 48 175 Stainless steel 29 60
Pcs
10300050277
SESF211N Bearing SNR SNR Stainless bearing Piece 48,4 Cylinder 4,14 C3 Rubber 100 34 130 25,5 4 162 44 162 Stainless steel 25 55
Pcs
10300050440
SUCF201N Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,75 C3 Rubber 47 12,8 64 6,6 4 86 25,5 86 Stainless steel 15 12
Pcs
10300050443
SUCF202N Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,74 C3 Rubber 47 12,8 64 6,6 4 86 25,5 86 Stainless steel 15 15
Pcs
10300050452
SUCF204N Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,7 C3 Rubber 47 12,8 64 6,6 4 86 25,5 86 Stainless steel 15 20
Pcs
10300050446
SUCF203N Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,72 C3 Rubber 47 12,8 64 6,6 4 86 25,5 86 Stainless steel 15 17
Pcs
10300050458
SUCF205N Bearing SNR SNR Stainless bearing Yes Piece 34,1 Cylinder 0,92 C3 Rubber 52 14 70 7,8 4 95 27 95 Stainless steel 16 25
Pcs
10300050467
SUCF206N Bearing SNR SNR Stainless bearing Yes Piece 38,1 Cylinder 1,32 C3 Rubber 62 19,4 83 11,2 4 108 30,5 108 Stainless steel 18 30
Pcs
10300050476
SUCF207N Bearing SNR SNR Stainless bearing Yes Piece 42,9 Cylinder 1,63 C3 Rubber 72 25,6 92 15,3 4 116 33,5 116 Stainless steel 19 35
Pcs
10300050482
SUCF208N Bearing SNR SNR Stainless bearing Yes Piece 49,2 Cylinder 2,17 C3 Rubber 80 32 102 19,3 4 130 36 130 Stainless steel 21 40
Pcs
10300050488
SUCF209N Bearing SNR SNR Stainless bearing Yes Piece 49,2 Cylinder 2,55 C3 Rubber 85 32,7 105 20,4 4 137 38 137 Stainless steel 22 45
Pcs
10300050497
SUCF210N Bearing SNR SNR Stainless bearing Yes Piece 51,6 Cylinder 2,82 C3 Rubber 90 35 111 23,1 4 143 40 143 Stainless steel 22 50
Pcs
10300050509
SUCF212N Bearing SNR SNR Stainless bearing Piece 65,1 Cylinder 5,67 C3 Rubber 110 52,4 143 35,9 4 175 48 175 Stainless steel 29 60
Pcs
10300050503
SUCF211N Bearing SNR SNR Stainless bearing Piece 55,6 Cylinder 4,13 C3 Rubber 100 43,3 130 29,2 4 162 44 162 Stainless steel 25 55
Pcs
10300050766
SUCF206FG1 Bearing SNR SNR Stainless bearing Piece 38,1 Cylinder 1,3 CN Rubber 62 19,4 83 11,2 4 108 30,5 108 Stainless steel 18 30
Pcs
10300050767
SUCF207FG1 Bearing SNR SNR Stainless bearing Piece 42,9 Cylinder 1,61 CN Rubber 72 25,6 92 15,3 4 116 33,5 116 Stainless steel 19 35
Pcs
10300050768
SUCF208FG1 Bearing SNR SNR Stainless bearing Piece 49,2 Cylinder 2,12 CN Rubber 80 32 102 19,3 4 130 36 130 Stainless steel 21 40
Pcs
10300050764
SUCF204FG1 Bearing SNR SNR Stainless bearing Piece 31 Cylinder 0,7 CN Rubber 47 12,8 64 6,6 4 86 25,5 86 Stainless steel 15 20
Pcs
10300050765
SUCF205FG1 Bearing SNR SNR Stainless bearing Piece 34,1 Cylinder 0,92 CN Rubber 52 14 70 7,8 4 95 27 95 Stainless steel 16 25
Pcs
10300050770
SUCF210FG1 Bearing SNR SNR Stainless bearing Piece 51,6 Cylinder 2,79 CN Rubber 90 35 111 23,1 4 143 40 143 Stainless steel 22 50
Pcs
10300050769
SUCF209FG1 Bearing SNR SNR Stainless bearing Piece 49,2 Cylinder 2,52 CN Rubber 85 32,7 105 20,4 4 137 38 137 Stainless steel 22 45
Pcs
